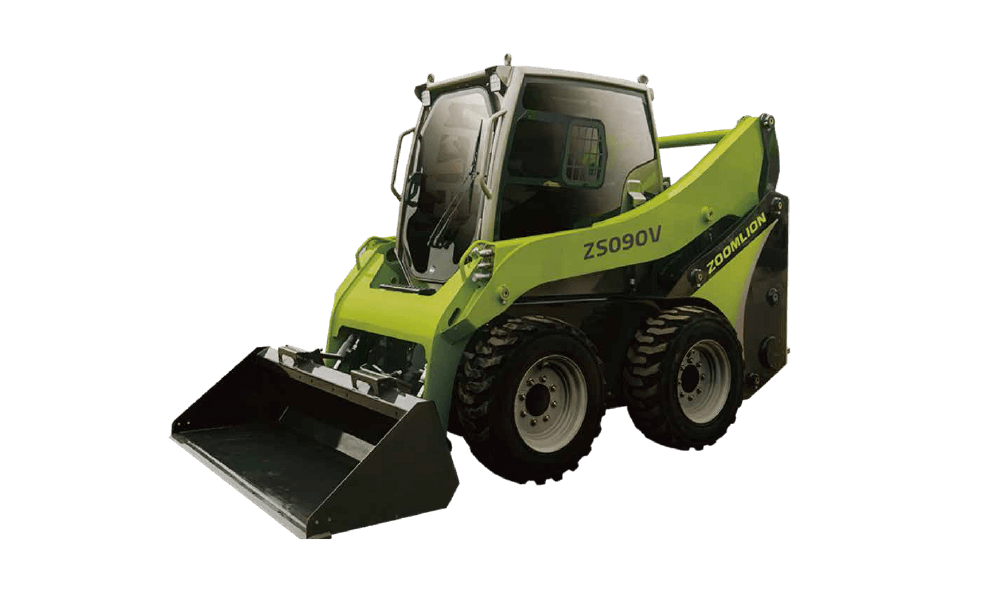

Skid Steer Loader
ZS090V
ZS090V
  • Engine manufacturer
    Kubota
  • Engine model
    V2403
  • Rated power/Rated RPM
    64.2/2700 hp/rpm
  • HIGHLIGHT
  • SPECS
HIGHLIGHT
  • High efficiency and energy saving
    • The dual throttle control technology is used to control the engine speed in real time according to the load change, which reduces the idling time of the engine in the high power section and greatly reduces the fuel consumption;

    • With patented technology of vertical lifting working equipment, it can load more, lift more and dump farther under the same power.

  • Intelligent and comfortable
    • The pressure boost dust prevention technology is adopted. The air pressure in the cab is higher than the external pressure by more than 50Pa. The high pressure prevents the external dust from entering the cab and protects the driver's health.

    • Multi-functional intelligent instrument can easily obtain equipment working status, maintenance information and reminders, fault information.

  • Safe and reliable
    • The patented design of downward arc bending of the working boom reduces the dead zone of the driver's lateral vision, and the side window adopts the integrated glass vision to greatly improve the driving safety.

ZS090V
Specs
Engine
Engine manufacturer Kubota
Engine model V2403
Rated power/Rated RPM 64.2/2700 hp/rpm
Performance
Operating weight 6609.5 lb
Rated operating capacity (ROC) 1986.4 lb
Standard bucket capacity 0.58 yd³
Maximum travel speed 7.15 mph
Boom cylinder breakout force (ISO) 3709.3 lbf
Bucket cylinder breakout force (ISO) 4159 lbf
Dimensions
Overall length 132.4 in
Overall width 67.9 in
Overall height 78.7 in
Minimum slewing radius 77.5 in
Wheelbase 42.5 in
Width to tyre edge 64.2 in
Work range
Maximum operating height 150.6 in
Maximum dumping height 93.6 in
Dumping reach 31.1 in
