ZRT1000V543A-Rough-Terrain-Crane-ZOOMLION HEAVY INDUSTRY SCIENCE&TECHNOLOGY CO., LTD.

Rough-Terrain-Crane

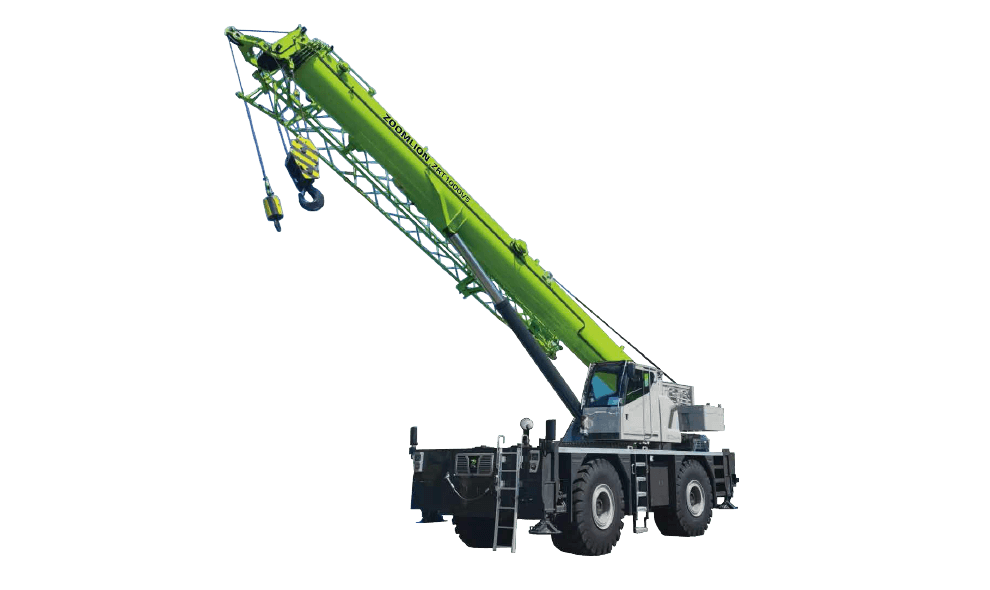

ZRT1000V543A

You are now leaving the ZOOMLION website.

We provide a link to 3Dliftplan.com as a service to our users. ZOOMLION is not responsible for the operation of 3Dliftplan.com, for the software, information, or comments found at 3Dliftplan.com, or for the results or outputs obtained through the use of 3Dliftplan.com. Any comments or questions about 3Dliftplan.com should be directed to the operator of 3Dliftplan.com.
3Dliftplan.com is to be used solely as an aid for planning lifts using ZOOMLION. The information obtained at 3Dliftplan.com shall not supersede the ZOOMLION Operator’s Manual, any safety manuals, or industry standards and regulations. Crane capacities and configurations may vary. Always refer to the Crane Rating Manual that corresponds to the crane being used for your lift. You are solely responsible for obtaining and entering the proper inputs and for planning and executing a safe lift plan. 3Dliftplan.com must never be substituted for the good judgment of the crane operator using safe operating procedures. It remains the responsibility of the operator to operate the crane safely at all times.

If you choose to proceed, click the button below.

Go to 3Dliftplan.com

Max. rated lifting capacity× working radius (lb.ft)

200000×8
Max. load moment of the basic boom (lb.ft)

2175808
Max. load moment of the boom(fully extended) (lb.ft)

1106343

Working performance
Max. rated lifting capacity× working radius (lb.ft)	200000×8
Max. load moment of the basic boom (lb.ft)	2175808
Max. load moment of the boom(fully extended) (lb.ft)	1106343
Max. lifting height of the boom(fully extended) (ft)	160.8
Max. lifting height of the jib (ft)	215.6
Dimensions
Overall dimensions (L × W × H) (ft)	49.0×11.2×13.0
Outrigger spread(longitudinal × transversal) (ft)	26.3×26.3
Boom length (ft)	40.4-157.5
Jib length (ft)	31.2、52.5
Boom angle (°)	-1-80
Slewing range	360° unlimitedslewing
Working speeds
Max. hoist rope speed (Main winch) (ft/min)	475.7
Min. boom telescoping out time (s)	110
Min. boom telescoping in time (s)	120
Min. boom derricking up time (s)	55
Min. boom derricking down time (s)	75
Slewing speed (r/min)	0-2
Weight and load
Gross weight (lbs)	112434
Front axle load (lbs)	55555
Rear axle load (lbs)	56879
Driving
Max. driving speed (mph)	22.9/22.9
Wheelbase (ft)	14
Treads(Front / Rear) (ft)	8.6
Max. gradeability (%)	75
